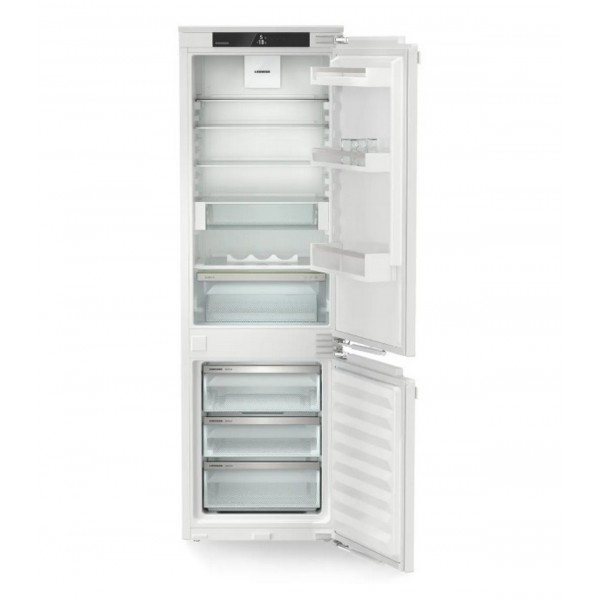

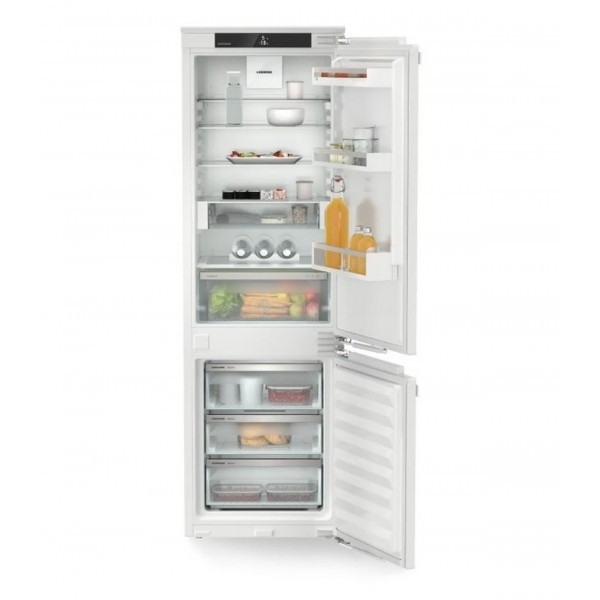

Liebherr ICNb 5123

Technical data

Power and consumption

• Energy efficiency class B
• Energy consumption per 24h 0.317 kWh / 24h
• Energy consumption per year 116 kWh/a
• Climate class SN-T
• Noise level 29 dB
• Sound emission class A
• Voltage 220-240 V ~
• Frequency 50/60 Hz
• Connection load 1.4 A 183 W

Control and function

• Control monochrome LC display, touch screen
• Control unit Touch
• Number of temperature zones 2
• Number of adjustable refrigeration circuits 2
• Temperature display Refrigerator and freezer compartment
• SuperCool Adjustable on the device and via the app
• SuperFrost Adjustable on the device and via the app
• Door alarm, cooling Adjustable on the device and via the app
• Door alarm, freezing Adjustable on the device and via the app
• BottleTimer Adjustable in the app
• Connection solution that can be installed
• IceCubeTimer –
• Night mode Adjustable in the app
• Screen lock Adjustable in the appliance

Fridge compartment

• Adjustable temperature range from +2 °C to +9 °C
• Humidity control DuoCooling
• Zones in the cooling chamber EasyFresh
• Use as a safe for fruit and vegetables or meat and diaries 1
• Automatic defrost
• Forced air cooling ✔
• FreshAir filter in the fan housing
• Shelf pull-out system built-in rails in the cooling chamber
• SoftSystem ✔
• Interior lighting in the cooling chamber LED top lighting
• Number of shelves in the refrigerator 6
• of which can be divided 1
• of which height-adjustable 5
• VarioSafe ✔
• OpenStage drawers –
• Bottle storage triple bottle shelf
• Bottle shelf 1
• Number of can holders 2
• VarioBox –
• VarioBoxes 0
• Butter container -
• Number of FlexCubes 1
• Egg tray 10 eggs
• Door shelf type Bottle and can shelf
• Height-adjustable inner door shelf Stepless adjustment
• Pull-out unit -

Freezer compartment

• Adjustable temperature range -15°C to -26°C
• Fridge compartment location at the bottom
• Automatic defrost
• Storage time after failure according to GS* 9 hours
• 24h freezing capacity according to GS* 6.00 kg / 24 hours
• Sections in the freezer compartment 3
• FrostSafe fully enclosed pull-out shelves with transparent fronts
• Drawer extension system in the freezer compartment Drawer on safety glass
• Interior lighting freezer compartment —
• 4-star freezer door —
• Number of glass panels in the 4-star freezer 0
• VarioSpace drawers ✔
• IceMaker-Safe backlight —
• Water connection —
• Ice cube tray Ice cube tray
• Number of ice cube trays 1
• Number of water filters 0
• Number of cold accumulators 0
• Freezer tray 0
• Star rating 4

Design and materials

• Dry back panel —
• Dry back panel material —
• Interior door trim —
• Bottle shelf material on door white plastic
• Shelf material, cold room Glass
• Adjustable shelves in freezer compartment material Glass
• Door/lid material Steel

Assembly and installation

• Mounting type For integrated use
• Door assembly Fixed door
• Max. kitchen unit door weight 18/12
• Door hinges Right
• Door hinge replacement Available to the customer
• Door opening angle 115°
• Door seal Replaceable
• Height adjustable feet 2
• Leveling bars ✔
• Number of leveling bars 2
• Ventilation Ventilation grille
• Decor frame -
• Plug type Euro
• Connection cable (length) 2,200 mm

Specifications

• Niche dimensions height / width / depth 177.2 - 178.8 / 56 - 57 / 55.0 cm
• External dimensions: height / width / depth (with packaging) 1,829.0 / 585.0 / 622.0 mm
• External dimensions: height / width / depth 177 / 55.9 / 54.6 cm
• Weight (without packaging) 67.8 kg
• Weight (with packaging) 74.2 kg
• Total volume ** 253 l
• Volume, refrigerator compartments 183 l
• Volume, freezer compartments 70 l
• Of which 4-star compartment 69.9 l
