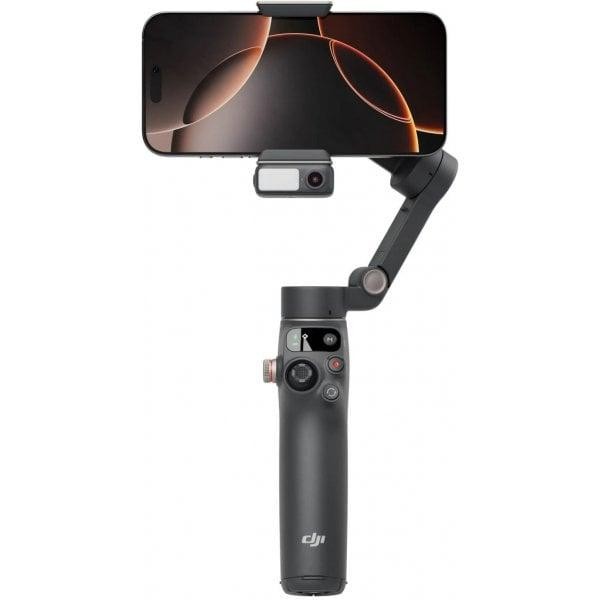

DJI Osmo Mobile 7P Smartphone Gimbal Black
✔ Extendable Smartphone Gimbal Stabilizer
✔ Multifunctional Module with Fill Light
✔ Magnetic Phone Clamp, Robust Motors
✔ 10.6 oz Load Capacity, Built-In Tripod

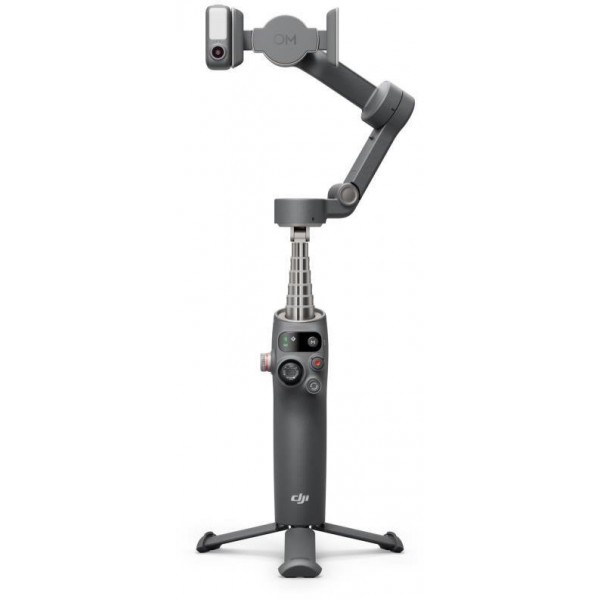

✔ 8.5″ Extension Rod
✔ ActiveTrack 7.0, Follow Modes
✔ Supports Smartphones up to 3.3″ Wide
✔ ShotGuides, AI Editor
✔ Supports Phone Charging via USB-C
✔ Control Gimbal/Phone with DJI Mimo App
DJI Osmo Mobile 7P Smartphone Gimbal Black
Key Specs
| Gimbal Design | Single Handgrip |
|---|---|
| Load Capacity | 6 to 10.6 oz / 170 to 300 g |
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Smartphone Dimensions | Thickness: 0.3 to 0.4" / 6.9 to 10 mm Width: 2.6 to 3.3" / 67 to 84 mm |
| Smartphone Mounting Method | Magnetic Clamp |
| Display Type | No |
| Dimensions | 7.5 x 3.7 x 1.8" / 190 x 95 x 46 mm (Folded) 11.3 x 4.2 x 3.8" / 288 x 107 x 96 mm (Handle to Handle) |
| Weight | 13.0 oz / 368 g |
Gimbal
| Load Capacity | 6 to 10.6 oz / 170 to 300 g |
|---|---|
| Number of Axes | Three: Pitch (Tilt) / Roll / Yaw (Pan) |
| Rotation Range | Controllable Range Yaw (Pan): 309° (-99 to 210°) Roll: 312° (-67 to 245°) Pitch (Tilt): 60° (-20 to 40°) Mechanical Range Yaw (Pan): 331° (-109 to 222°) Roll: 332° (-77 to 255°) Pitch (Tilt): 324° (-224 to 100°) |
| Follow Speed | 120°/s |
| Counterweight | No |
| Joystick Controller | Yes (Included) |
Compatibility
| Smartphone Dimensions | Thickness: 0.3 to 0.4" / 6.9 to 10 mm Width: 2.6 to 3.3" / 67 to 84 mm |
|---|---|
| Smartphone Mounting Method | Magnetic Clamp |
Connectivity
| Inputs/Outputs | 1x USB-C Input/Output |
|---|---|
| Wireless | Bluetooth 5.3 *Built-In |
| Mobile App Compatible | Yes: Android & iOS App Name: DJI Mimo |
Battery
| Battery Type | 1x Lithium-Ion Polymer |
|---|---|
| Battery Runtime | 10 Hours |
| Battery Charging Time | 2.5 Hours |
General
| Display Type | No |
|---|---|
| Environmental Resistance | No |
| Operating Conditions | 41 to 104°F / 5 to 40°C |
| Accessory Mounting | 1 x 1/4"-20 Female |
| Dimensions | 7.5 x 3.7 x 1.8" / 190 x 95 x 46 mm (Folded) 11.3 x 4.2 x 3.8" / 288 x 107 x 96 mm (Handle to Handle) |
| Weight | 13.0 oz / 368 g |
Packaging Info
| Package Weight | 1.145 lb |
|---|---|
| Box Dimensions (LxWxH) | 8.7 x 5 x 2.5" |
Identifiers
| MPN | CP.OS.00000401.01 |
|---|---|
| GTIN / EAN / UPC | 6941565997517, 6941565997517 |
